219 Design Raspberry Pi 4 3D Printed Case

I was contacted by Abe McKay, Mechanical Engineer at 219 Design to see if I was interested in testing their case which they’d designed for their own internal use, as covered in Abe’s blog post. Not being in the same country and without my own 3D printer meant Abe had to figure out a cost-effective method to get the printed design to me. They opted to have the case printed by 3DPrint UK, however, they use nylon filament whereas to date Abe has printed their design using PLA. So there was a degree of uncertainty around the outcome.

In addition to the 3D printed case, the 219 Design team supplied a suitable heatsink and fan kit, which comprised:

  • 1 x 30x30x7mm Pi-Fan (unknown performance specifications)
    • Model: GF3007BS
    • Power: 5V, 100mA
    • Independent power leads enabling 5V or 3.3V power
  • 1 x 14x14x4mm Heatsink for the Arm SoC
  • 1 x 15x9x5mm Heatsink for the DDR4 memory chip
  • 1 x 7x7x6mm Heatsink for the Ethernet controller
  • 1 x 7x7x3mm Heatsink for the USB controller

Construction/Build Quality

To be fair to Abe and 219 Design team, they used an untested supplier and printing material for the case they created for me to test. As such some of the problems I cover here may not be applicable to printing in other materials, or with different suppliers. Without my own 3D printer, it’s not possible to experiment and iterate the design.

If anyone wants to donate a 3D printer, please get in touch.

As I have a backlog of items to review and my own projects, I wasn’t able to do my full round of testing when the case first arrived. However, it was useful to share my first impressions with Abe and the 219 Design team and get some feedback from them.

  • The black lid section arrived slightly warped so that it didn’t lie completely flat when placed on a flat surface. However, it didn’t stop it mounting flush when installed. After completing all my testing which put the case through some significant heat cycles, the lid remained slightly warped but reduced.

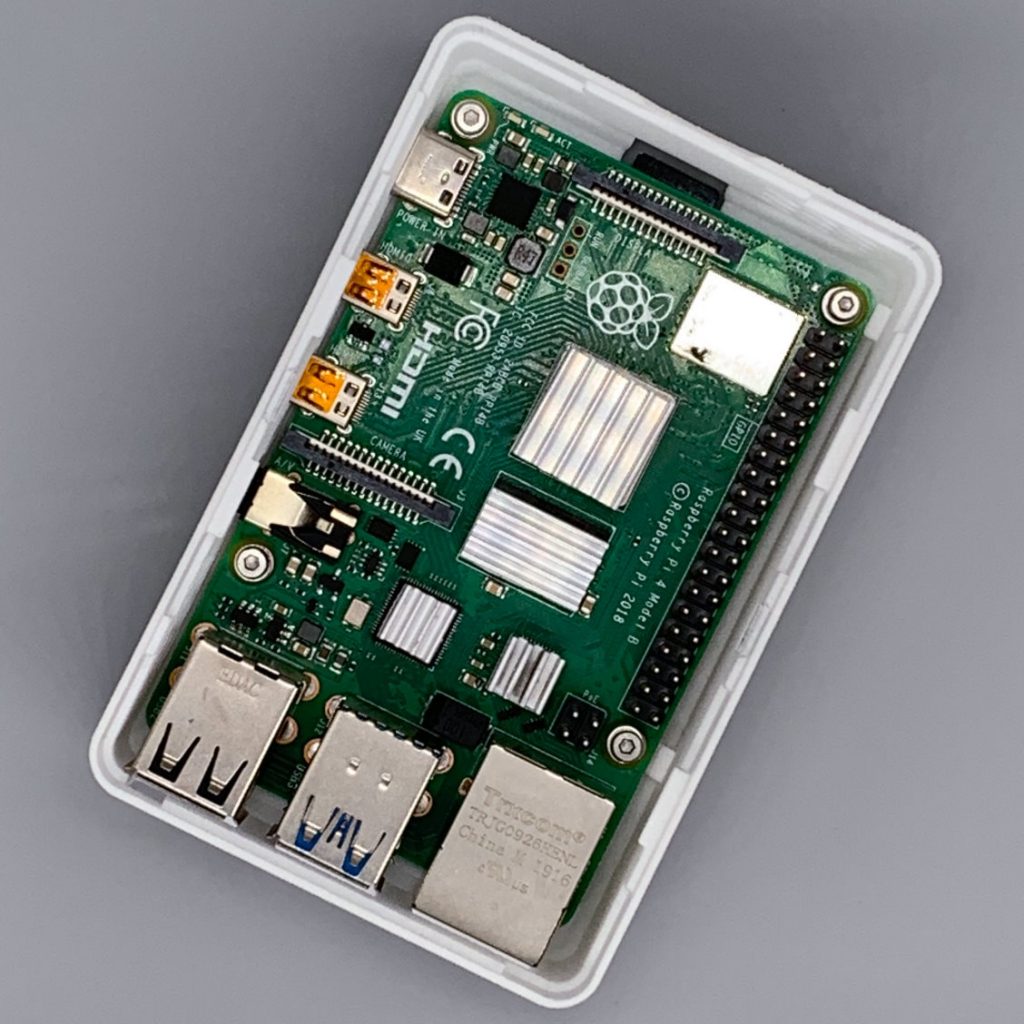

  • I expected the Raspberry Pi 4 to be secured by clips around the edge of the case, Abe confirmed there are snap clips to secure the board, but it relies on a precision 3D print, which it appears this print/martial didn’t deliver. Fortunately, the case includes some bosses to secure the Pi with screws. I used short M2 screws I had, though the bosses were designed for imperial screws (specifically these), the metrics screws worked fine. I’d have prefered a screwless design.
  • The fan mounting clip works well. There is some play in between the fan and the mount, but this didn’t lead to any problems with noise/vibration.
  • The placement and size of the raspberry motif on the case lid is a bit odd and I think could be improved.
    • With the fan installed two of the fans unused mounting holes are visible. I’d have expected the circular fan blades to be directly under the main part of the berry and the mounting holes hidden.
    • In addition, as airflow is controlled by the area of the fan blades, not the central area, then minimising plastic covering these areas would maximise performance and minimise noise. The upper left and right section of the fan are mostly obstructed in the current design.

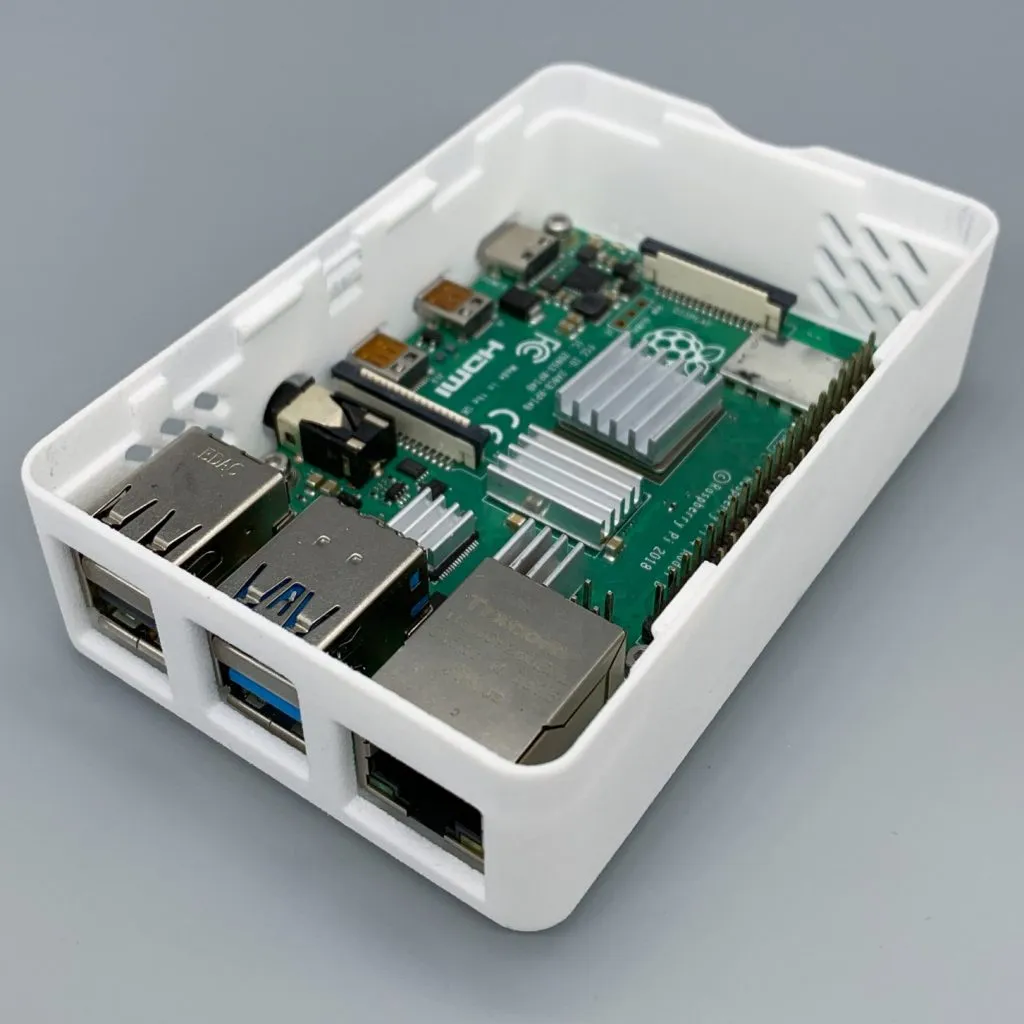

  • Looking end on to the USB and Network connections for the Pi. The positioning or thickness of some of the vertical bars looks a little off.
    • The openings for the Ethernet and USB ports aren’t exactly centred for the ports when the board is installed. It’s only off by a small amount but it’s highlighted when only one side of the shielding surrounding the ports is visible.
    • The opening for the USB2 ports is higher than that for the USB3 ports. Abe has admitted this flaw slipped through.
  • The rear/base of the case includes a couple of mounting slots to enable the enclosure to be slotted over a couple of screws. Providing a degree of security, whilst also allowing it to be easily removed as needed.
  • Looking end on to the MicroSD card slot case features some ventilation slots, an embossed 219 logo, some careful detail around the SD card slot, ensuring it can be easily removed. There is also a small scoop out of the top edge to provide easy finger access to remove the lid. There are a couple of dots, that I’d have expected to have been holes or deeper depressions to better show the status lights on the Raspberry Pi 4 board. As is, they are barely visible through the slightly translucent white of the case.

In terms of the overall appearance, the 219 Design case is very professional looking with only a small number of flaws that it would be good to see addressed. The case feels solid and well constructed, a step up in quality compared to the previously tested John Sinclair 3D printed case.

Unique feature: Development Mode

With the lid on the case, access to the GPIO header and other connections isn’t possible, which may be seen as a significant limitation. However, the 219 Design team have thought of this, the case lid can actually be fitted at 2 levels. If the lid is removed, rotated 180° then re-installed it creates a 1mm gap at various points around the edge of the case, sufficient to feed out GPIO wires and small ribbon cables to various accessories. Note that you can’t fit a 40 wire ribbon cable through, as some supports along the side that restrict access. The 219 Design team call this “Development Mode” compared to the regular “Desktop Mode”, nice touch.

Thermal Testing

I thought it would be interesting to see how the 219 Design case performed in a passive cooling scenario given there is some ventilation provided on the sides and top of the case. This was followed by tests with the fan installed and powered by the Raspberry Pi GPIO header, using either 5V or 3.3v power.

Testing is once again performed using my fork of Stressberry (though most of my changes have been accepted upstream, I have some additional helper scripts to aid my testing and analysis.) Tests are conducted for 1hr against 1, 2, 3 then all 4 cores of the Raspberry Pi 4.

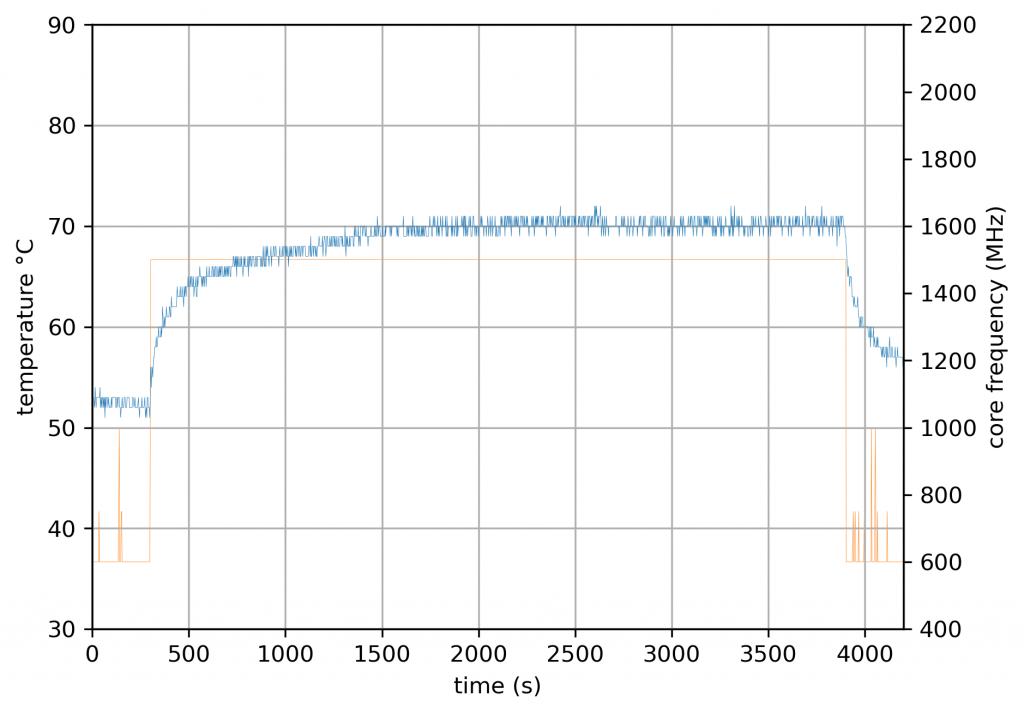

Passive Cooling

With just passive cooling throttling only occurs during the 4 core stress test, frequently dropping from 1500MHz to 1000MHz. With a peak temperature of 84°C, it doesn’t do well compared to the passive optimised cases like the Argon40 Neo (~74°C) or the Armour Radiator (~63°C).

Active Cooling

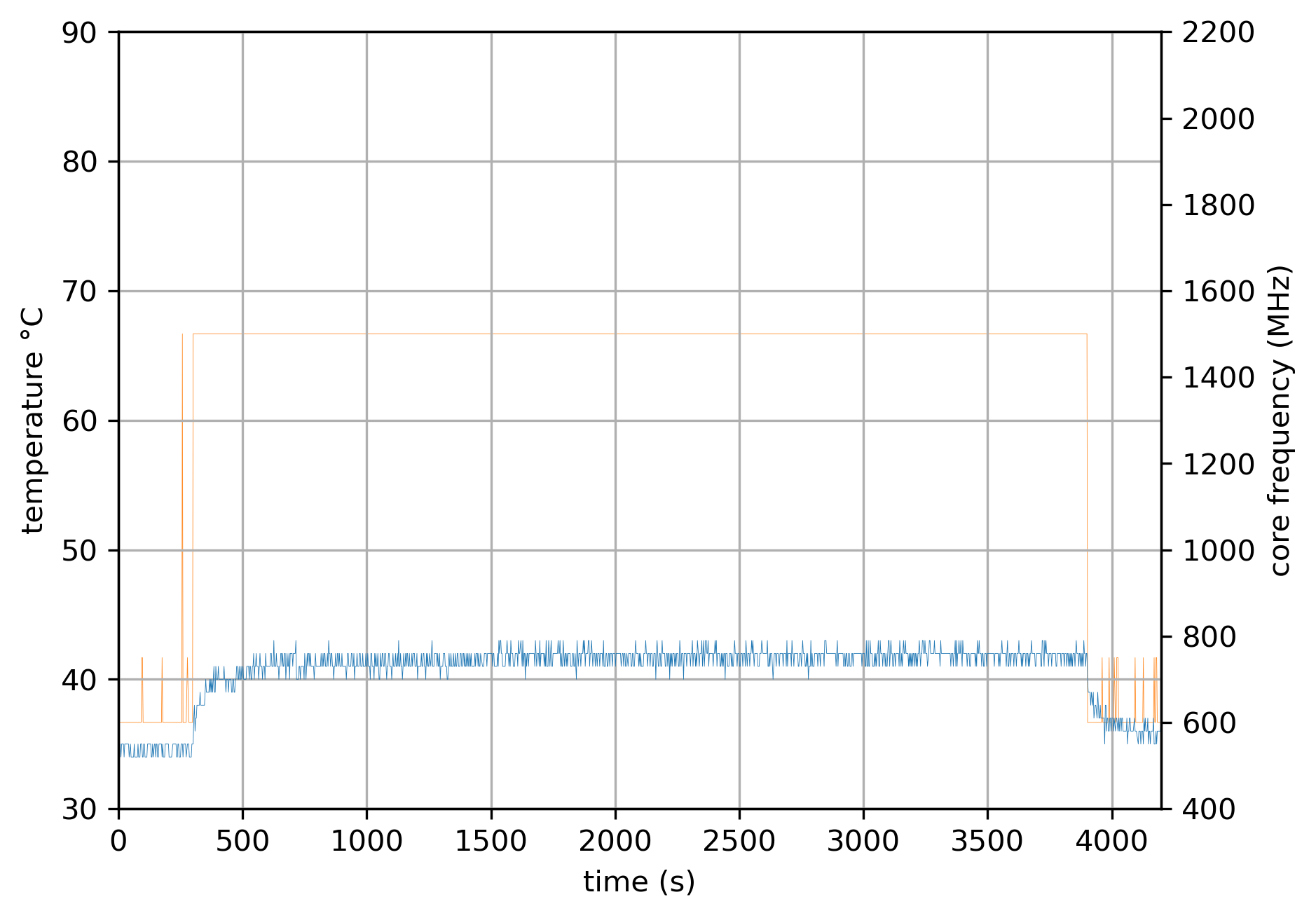

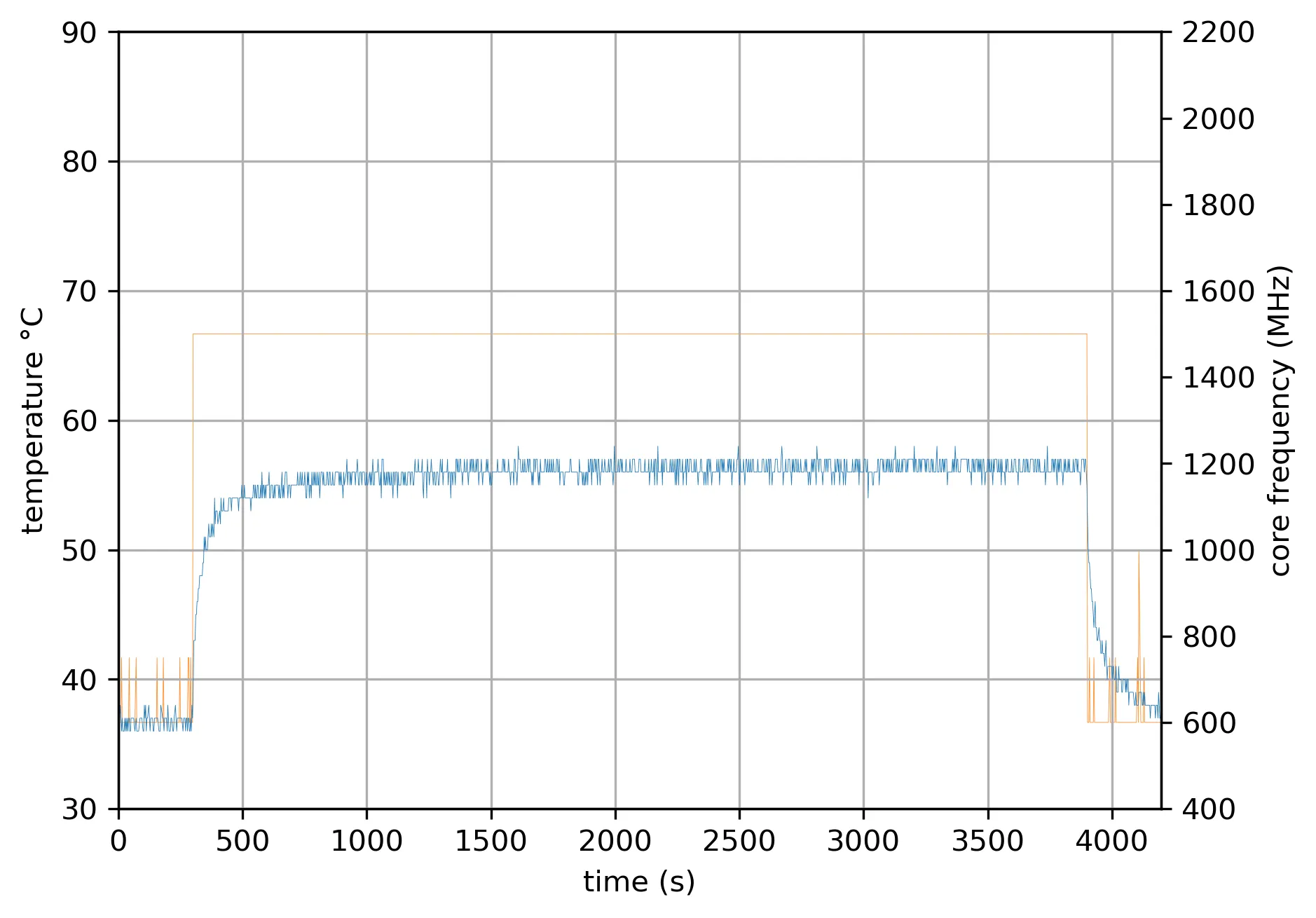

3.3V Fan

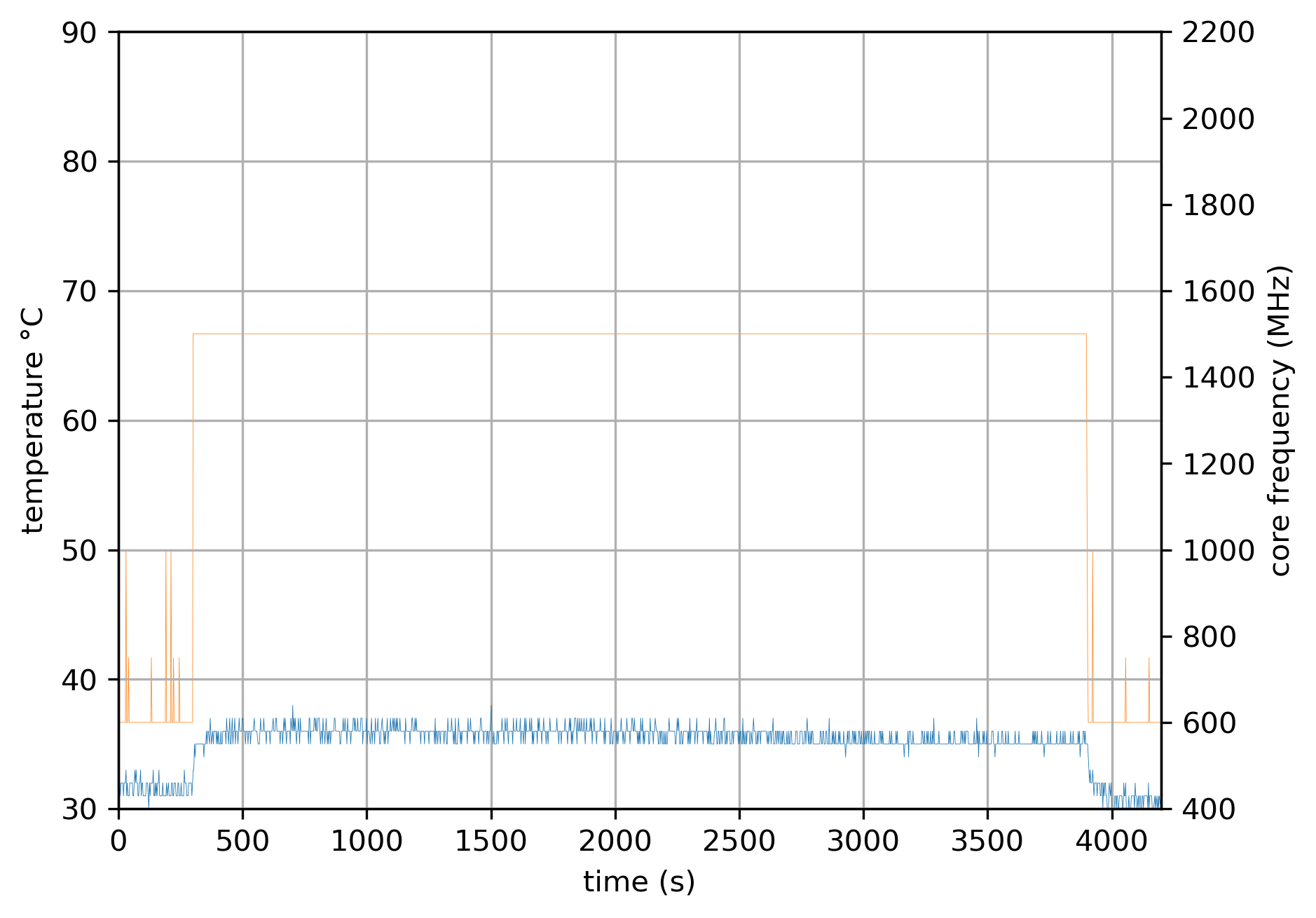

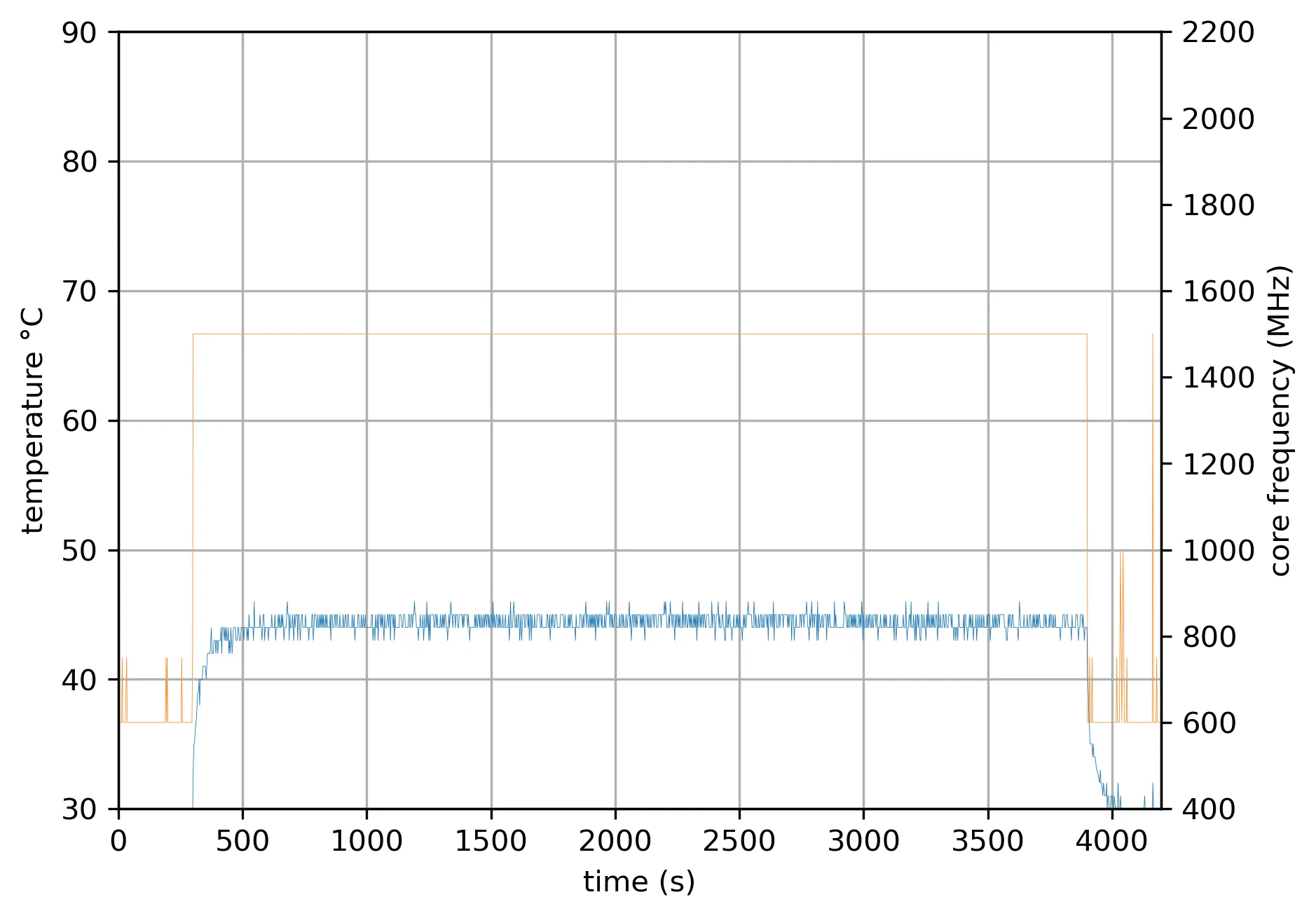

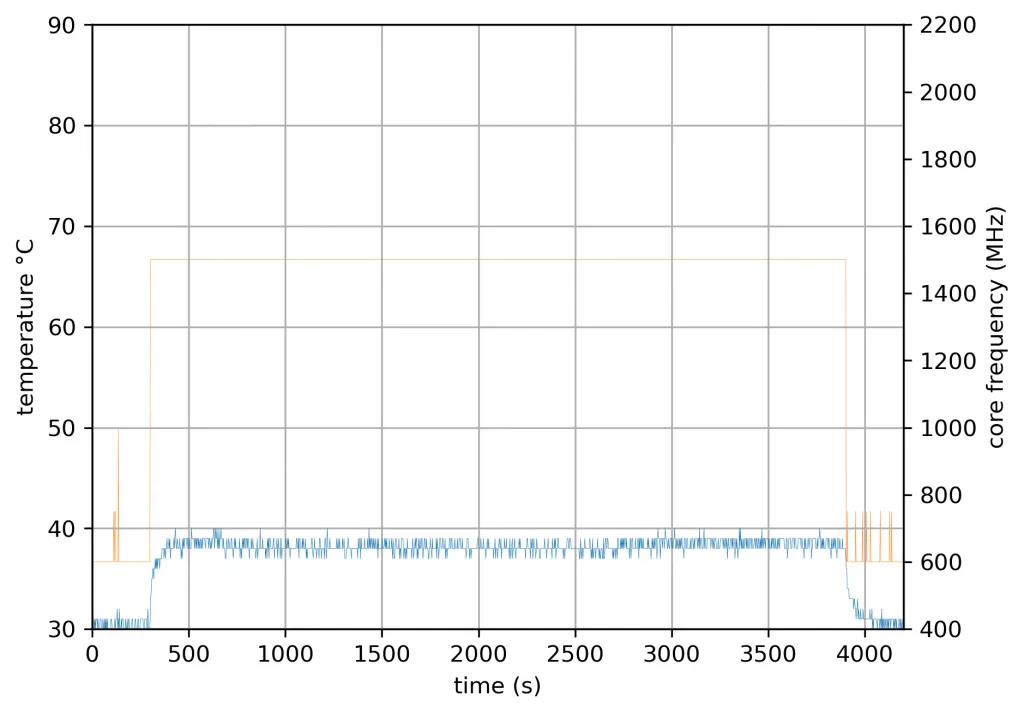

5V Fan

With active cooling provided by the 30mm fan either running at 5V or 3.3V, the Raspberry Pi is a long way from thermal throttling. The 5V is clearly more effective especially as load increases, seeing 12°C lower temperatures at peak load.

Thermal Testing Comparison

Comparing the 219 Design case fanless, with the fan running at 3.3V and at 5V, whilst accounting for variation in the ambient temperature we can see how much of an impact active cooling provides.

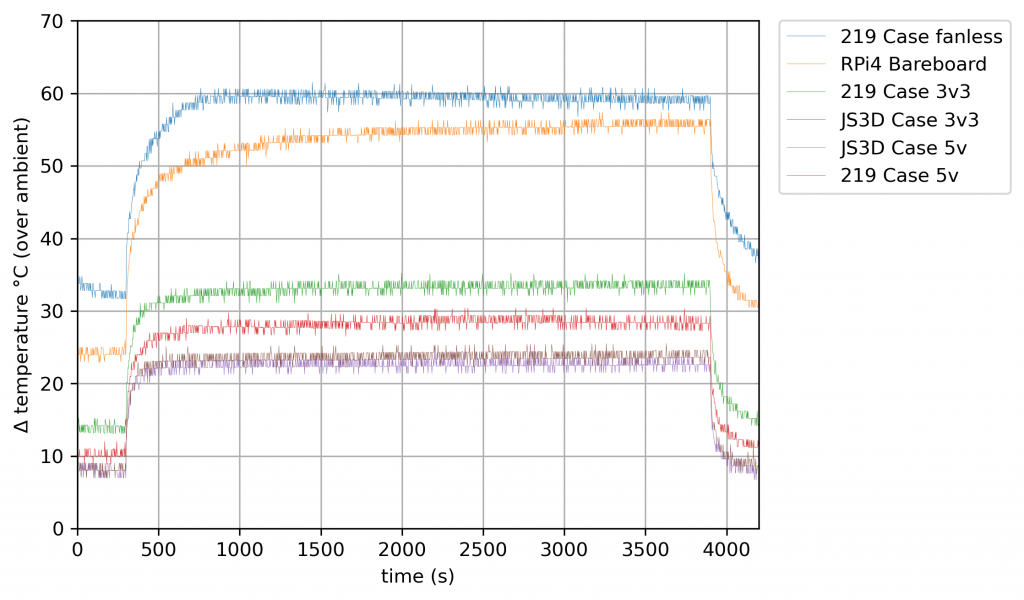

Evaluating how the 219 Design case performs against other options leads to the obvious comparison points with a bare Raspberry Pi 4 and the aforementioned John Sinclair 3D printed case. I used the Same Raspberry Pi 4 in the JS 3D case, so the heatsinks are still installed on all the components, with a 40mm Noctua Fan providing the cooling. The Noctua was the quietest in the 40mm fan test, though louder fans can provide increased cooling. As above the temperatures take account for variation in ambient temperature, and present the results as the amount above the measured ambient temperature.

The RPi4 Bareboard doesn’t include any heatsinks, but not being enclosed at all means it outperforms the enclosed fanless 219 Design option. As expected as soon as active cooling is added, the 219 Design and JS3D provide a significant improvement in cooling performance. The JS3D slightly outperforms the 219 Design at 3.3V, most likely due to an overall less restrictive airflow design. At 5V the two offerings are close to identical in terms of thermal performance.


I’m unable to perform accurate noise measurement at the moment. Subjectively the 219 Design case with the fan running at 3.3V is near silent. At 5V it becomes more audible but not to an offensive level. The 40mm Noctua in the JS3D case running at 5V is quieter than the 30mm Pi-Cool fan at the same voltage. However, compared to some of the other 40mm fans at 5V the Pi-Cool fan is noticeably quieter.
